Click through our range of case studies below to find out how Aspherix® and CFDEM®coupling is applied to effectively support simulations in various pharmaceutical industries.

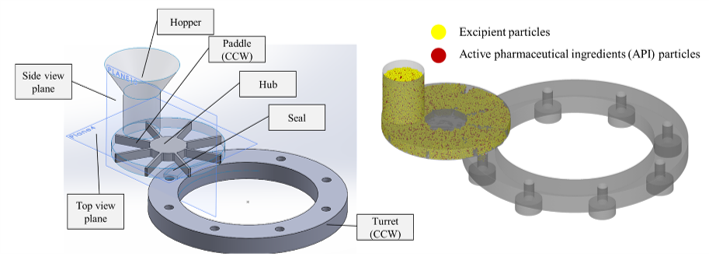

DEM simulations of rotary tablet press in collaboration with Alkermes Inc.*

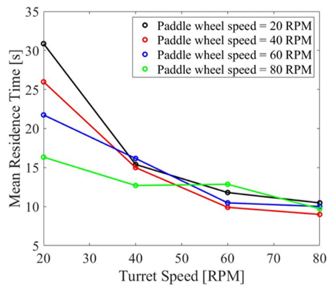

Effect of paddle and turret velocities (from 20 to 80 RPM) on:
*Li, Zihao, et al. “Particle Scale Insights into a KG-Pharma RoTab Tablet Press Feed-Frame System Using the Discrete Element Method (DEM) Modeling.” Processes 11.1 (2023): 119.
By loading the video, you agree to Vimeo's privacy policy.
Learn more

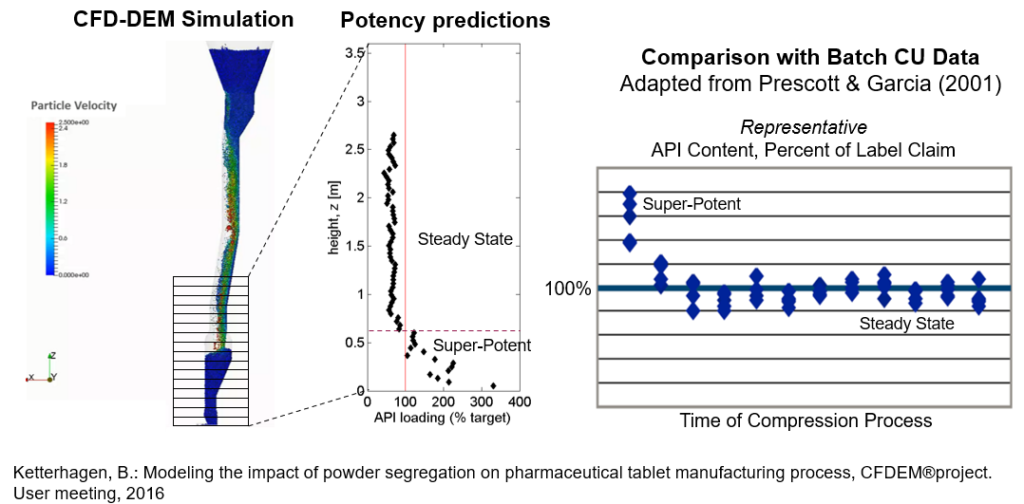

Simulation of commercial scale tablet press feed system with a coupled CFD-DEM model.
By loading the video, you agree to Vimeo's privacy policy.
Learn more
This video shows a full-coupled CFD-DEM simulation of a fluidized bed granulation process. A liquid-solid mixture is sprayed into the granulator (see droplets in magenta) from a nozzle. The liquid and solid species are deposited onto the carrier particles and, partially, onto the granulator walls. The product quality (between 0 to 1) measures the coating/granulation level of the carrier particles. Finally, the temperature field changes dynamically due to the heating from the fluidization air and the cooling due to the liquid evaporation.
By loading the video, you agree to Vimeo's privacy policy.
Learn more

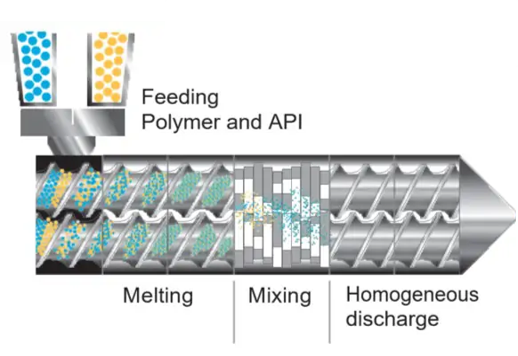

Twin-screw extruders (TSEs) are widely used for processing polymers, chemicals and foodstuff.

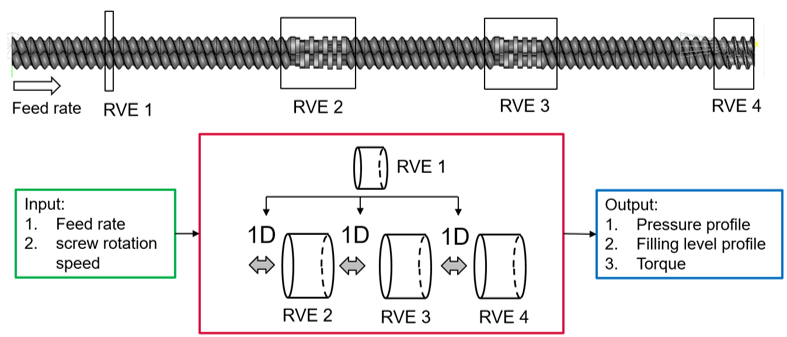

Development of a 1D-3D model for polymer extrusion in TSE (collaboration with Novartis*)
The 3D part consists of DEM simulations of representative volume elements (RVEs)
The 1D part is a low-order model bridging the solution between the RVEs
By loading the video, you agree to Vimeo's privacy policy.
Learn more
The animation shows the simulation of the release of API from coated particles in a dry powder inhaler. On the left side we see the API concentration in the air, on the right side the coating on the particles.
By loading the video, you agree to Vimeo's privacy policy.
Learn more
Simulation of paste extrusion where the Edinburgh model is used to model cohesion.
By loading the video, you agree to Vimeo's privacy policy.
Learn more
The animation shows the flow of 5 micron sized evaporating droplets flowing through the nasal airways during a respiration cycle. The air flow information is pre-calculated using CFD and the transient flow field is imported to Aspherix®.
By loading the video, you agree to Vimeo's privacy policy.
Learn more
This simulation shows a roller compaction process, where a lactose powder is compacted into a ribbon by two counter-rotating rollers. The material is grabbed by the cylinders due to particle/wall friction and transported into the compaction zone, where the ribbon is formed. Roller compaction is a typical dry granulation step and the produced ribbon is generally comminuted into granules with the desired size.
